Civil 3D Corridor Components that Decide Your Road Design Accuracy
If you are working with Autodesk and involved in road, highway, or infrastructure design, then understanding Corridor Components is not optional — it is essential.
Many Civil 3D users know how to create a corridor, but very few truly understand what actually builds a corridor internally.
This lack of understanding leads to surface errors, wrong quantities, and poor designs.
In this article, we will break down Civil 3D Corridor Components in a simple, practical, and professional way so you can design corridors with confidence.
What Is a Corridor in Civil 3D?
A Corridor in Civil 3D is a dynamic 3D model used to design:
- Roads & highways
- Railways
- Canals
- Infrastructure corridors
A corridor is generated using:
- Baseline
- Assembly
- Frequency
- Targets
But the real geometry of the corridor comes from its components. Read About Expert Site and Infrastructure Planning, Design with Civil 3D Pro.

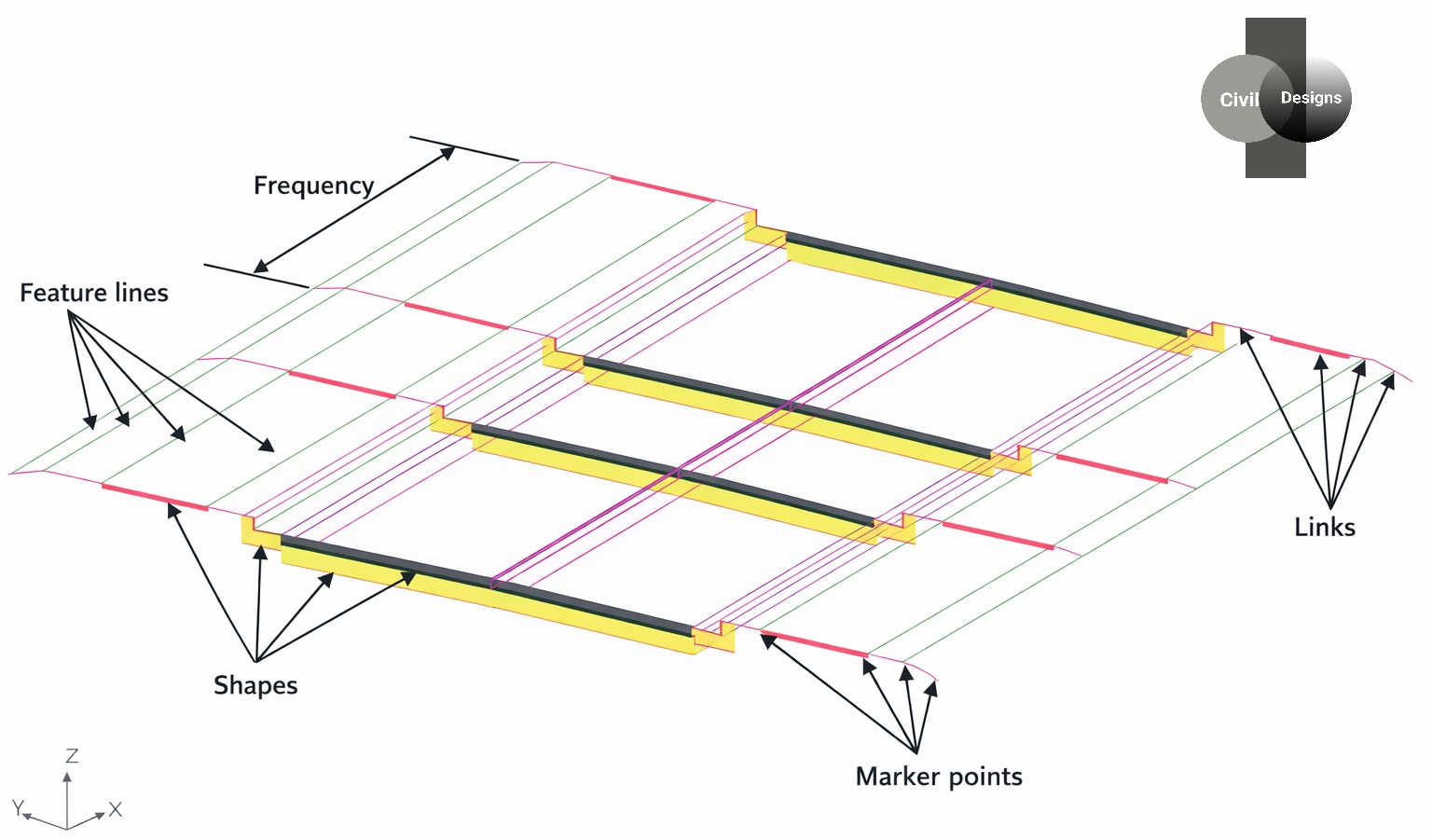

What Are Civil 3D Corridor Components?
Corridor components are the core building elements that form and elements that make up a corridor model, such as lanes, curbs, shoulders, and sidewalks. Read About Civil engineering.
